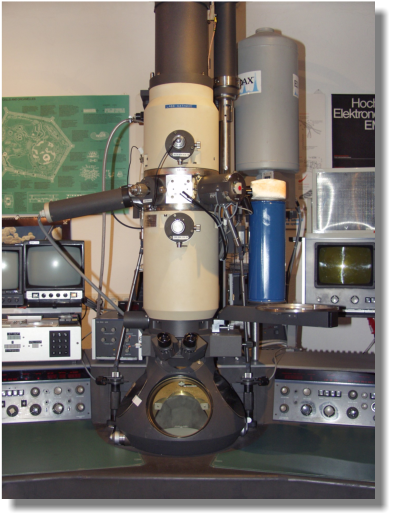

Site Notice        GTC Transmission Electron Microscopy Philips 420 analytical TEM, STEM, SEM: Accelerating voltage 20 kV to 120 kV LaB6 cathode for superior illumination and EDS spectra Ion getter pump for oil-free vacuum Goniometer-stage with storable positions Multi detector system in STEM / SEM-Mode: 1x SE, 1x BSE, STEM darkfield, STEM brightfield EDS system (EDAX 9100) Resolution limit in TEM mode ca. 0,25 nanometer point to point Resolution limit in SEM mode ca. 4 nanometer point to point Image aquisition system prior to be build in Peltier-cooled digital 1024x1024 Pxel Tietz TN1000 camera for high resolution images
